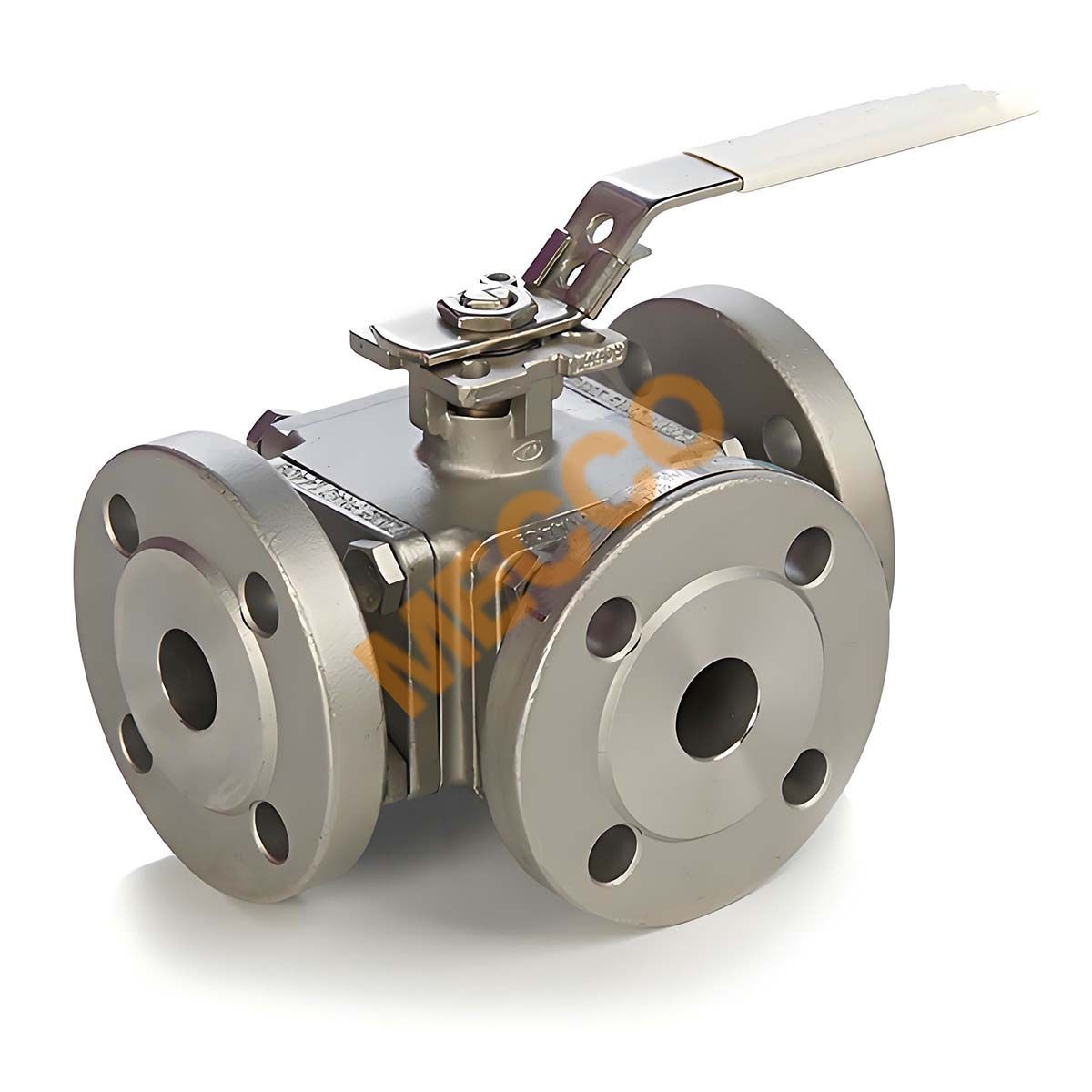

A three-way ball valve is a versatile flow control device designed to divert media between different pipelines or mix flows as needed. Featuring a durable valve body and available in full port designs, these 3-way valves provide excellent flow capacity with minimal pressure drop. Constructed from stainless steel, they offer high quality performance and long service life, even in demanding applications. Depending on system requirements, a three-way ball valve can be equipped with an electric or pneumatic actuator for automated operation, making it an ideal solution for industries that require reliable control and flexibility in diverting media.
A three-way ball valve enables more complex fluid control functions by rotating the ball to change the flow direction. It can be used for fluid diversion, mixing, and flow switching, with any pipeline serving as an inlet or outlet.
Size:
NPS1/2~~NPS24 (DN15~~DN600), customization available beyond this range upon customer request.
Material:
Body material according to customer order, can use cast or forged materials.
Internal Parts/Stem:
Sealing materials and stem can be selected based on the medium and temperature, using appropriate soft or hard sealing materials.
Structure:
The ball features precisely machined L-shaped or T-shaped flow channels, with surfaces often hardened. The L-shaped ball enables 90-degree flow direction switching, while the T-shaped ball allows for diverting, merging, or three-way communication.
Operation Mode:
Handle, worm gear drive, electric, pneumatic, etc.
