Strainer

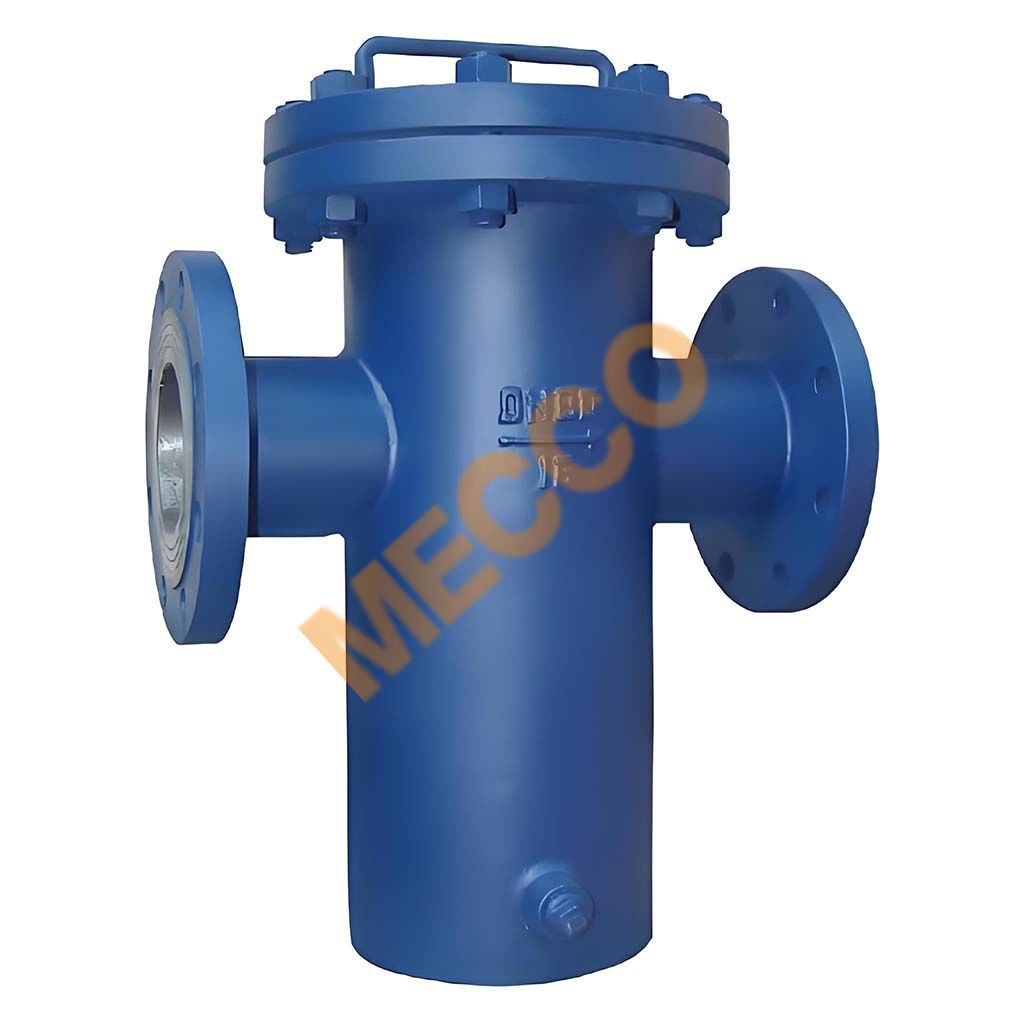

A filter is a pipeline accessory used to remove solid impurities from fluids, typically installed at the inlet of pressure reducing valves, pressure relief valves, constant water level valves, and other equipment. It protects process equipment and specialized pipe fittings (such as compressors, pumps, fuel nozzles, steam traps, etc.) by preventing debris from entering, which could damage components or clog fittings, thereby ensuring stable process operation and safe production. MECCO filters are designed according to HG/T 21637 and can also be customized per customer-specified standards.
Size:
NPS2~~NPS24 (DN50~~DN600), customization available beyond this range upon customer request.
Material:
Body material according to customer order, cast iron, cast steel, and forged steel all available.
Filter Screen:
Stainless steel wire.
Structure:
Basket type, T type, Y type, etc.
Operation Mode:
None.
