Cast Steel Check Valve

The Mecco cast steel check valves are designed and manufactured according to API 6D, API 594, BS 1868, GB/T 12235, and GB/T 12236 standards. Pressure ratings include CL150, CL300, CL600, CL900, CL1500, and CL2500 (or PN16–PN420). If additional pressure levels are required, the design can be based on ASME B16.34 or GB/T 12224. The temperature range is -29°C to 538°C.
Size:
NPS 2~~NPS 60 (DN50~~DN1500); sizes beyond this range can be custom manufactured upon request.
Material:
Body materials are selected according to customer orders. Common cast materials include WCB, LCB, WC6, WC9, WC5, C12, C12A, CF8, CF8M, CF3, CF3M, CF10, CF10M, CF8C, CK20, CK3MCuN, A4, 5A, 6A, CN7M, CN3MN, M30C, CU5MCuC, CW6MC, CW12MW, CY40. Other uncommon materials can be customized upon request.
Trim/Pin:
Trim and pin materials are configured according to API 6D, API 594, BS 1868, GB/T 12235, GB/T 12236 standards or customer requirements.
Construction:

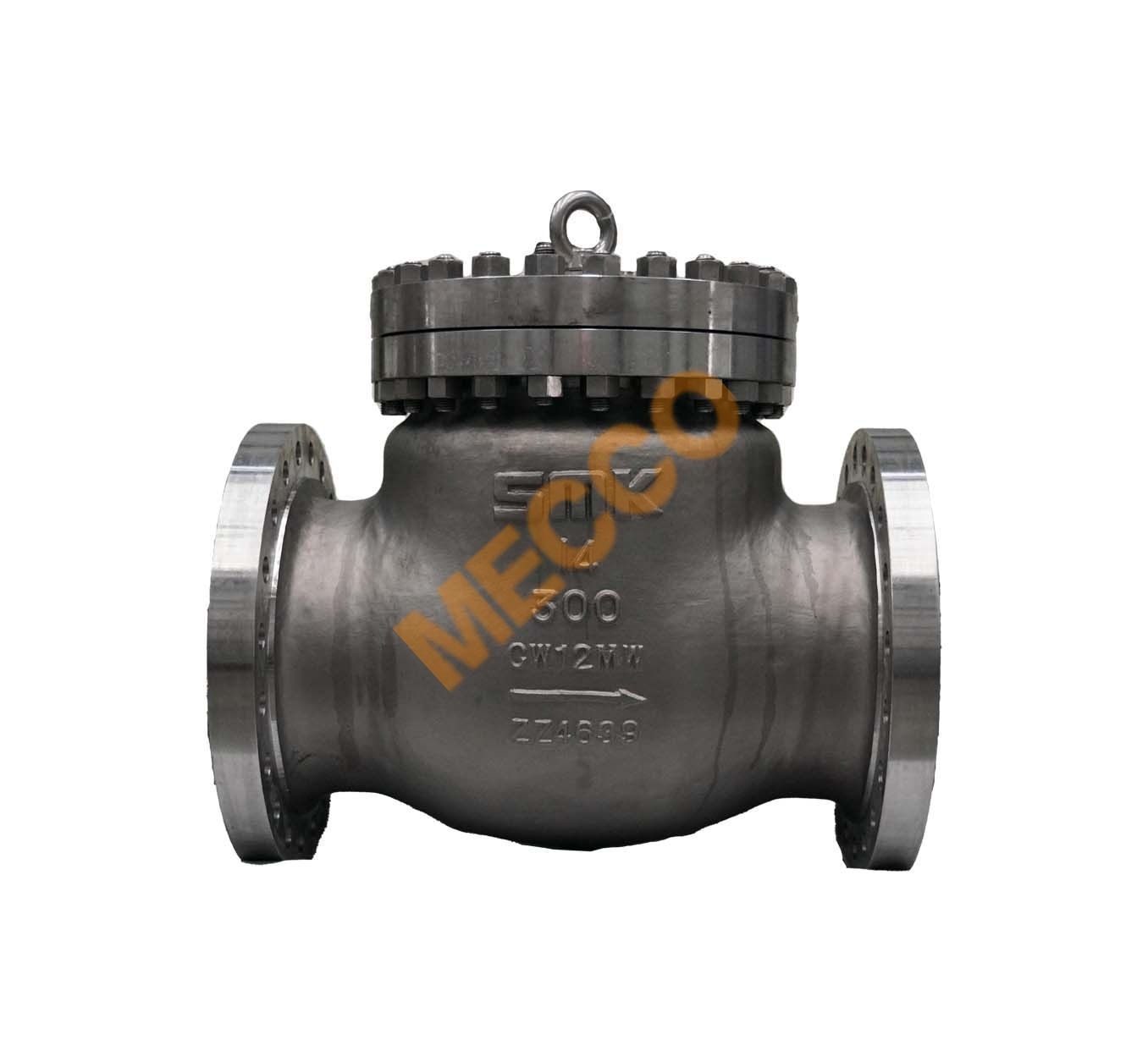

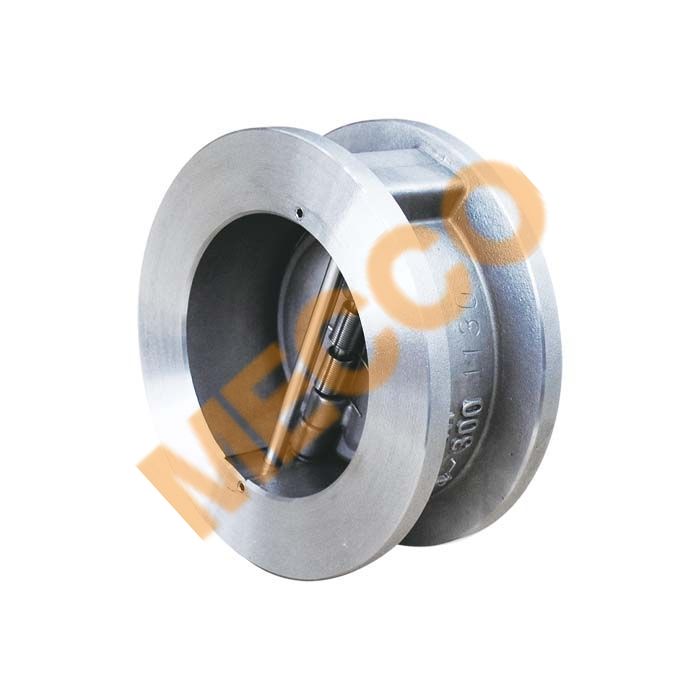

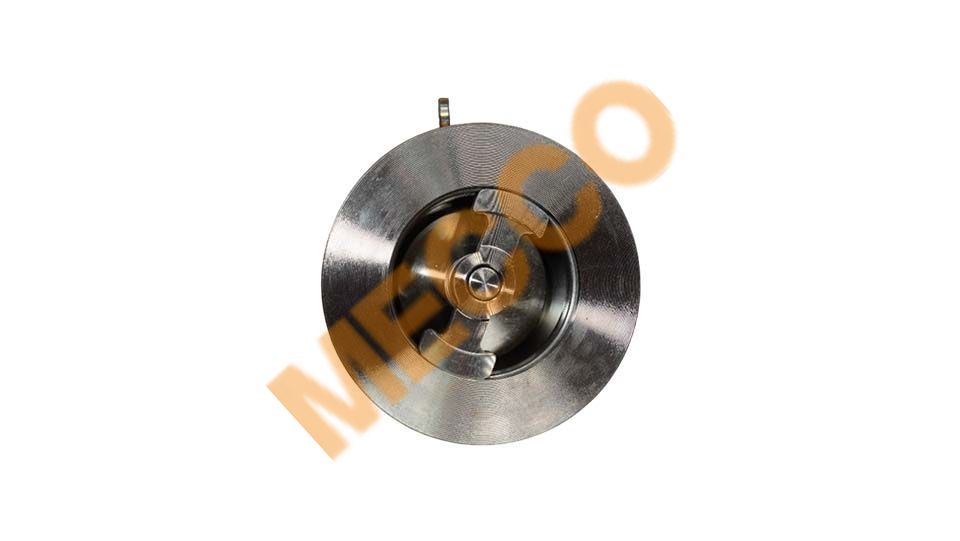

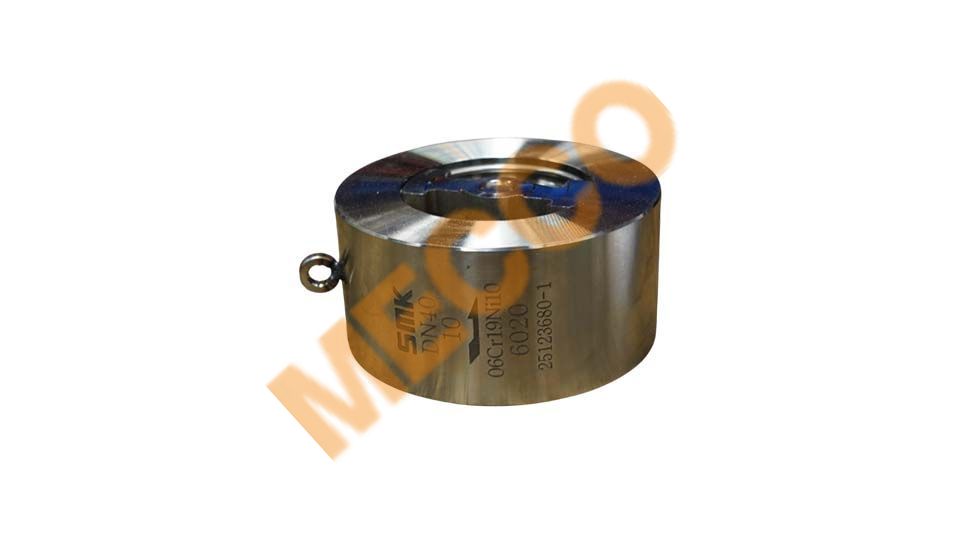

Swing type (including tilting disc), lift type, axial flow type, double-plate type; with bolted bonnet or pressure-seal bonnet, or customized designs according to customer requirements.
Operation:
Automatic valve, no manual operation.
