Ball Valve

Home  Products  Ball Valve

Floating Ball Valve

MECCO Floating Ball Valves are designed and manufactured in accordance with API 608, API 6D, ISO 17292, and GB/T 12237. Available pressure ratings are CL150, CL300, and CL600 (or PN16 to PN110). For other pressure classes, design can be carried out in accordance with ASME B16.34 or GB/T 12224. Operating temperature range: -29℃ to 538℃.
Product Details
Trunnion Mounted Ball Valve

MECCO Trunnion Mounted Ball Valves are designed and manufactured in accordance with API 608, API 6D, ISO 17292, and GB/T 12237. Pressure ratings include CL150, CL300, CL600, CL900, CL1500, and CL2500 (or PN16 to PN420). If other pressure ratings are required, design can follow ASME B16.34 or GB/T 12224. Operating temperature range: -29℃ to 538℃.
Product Details

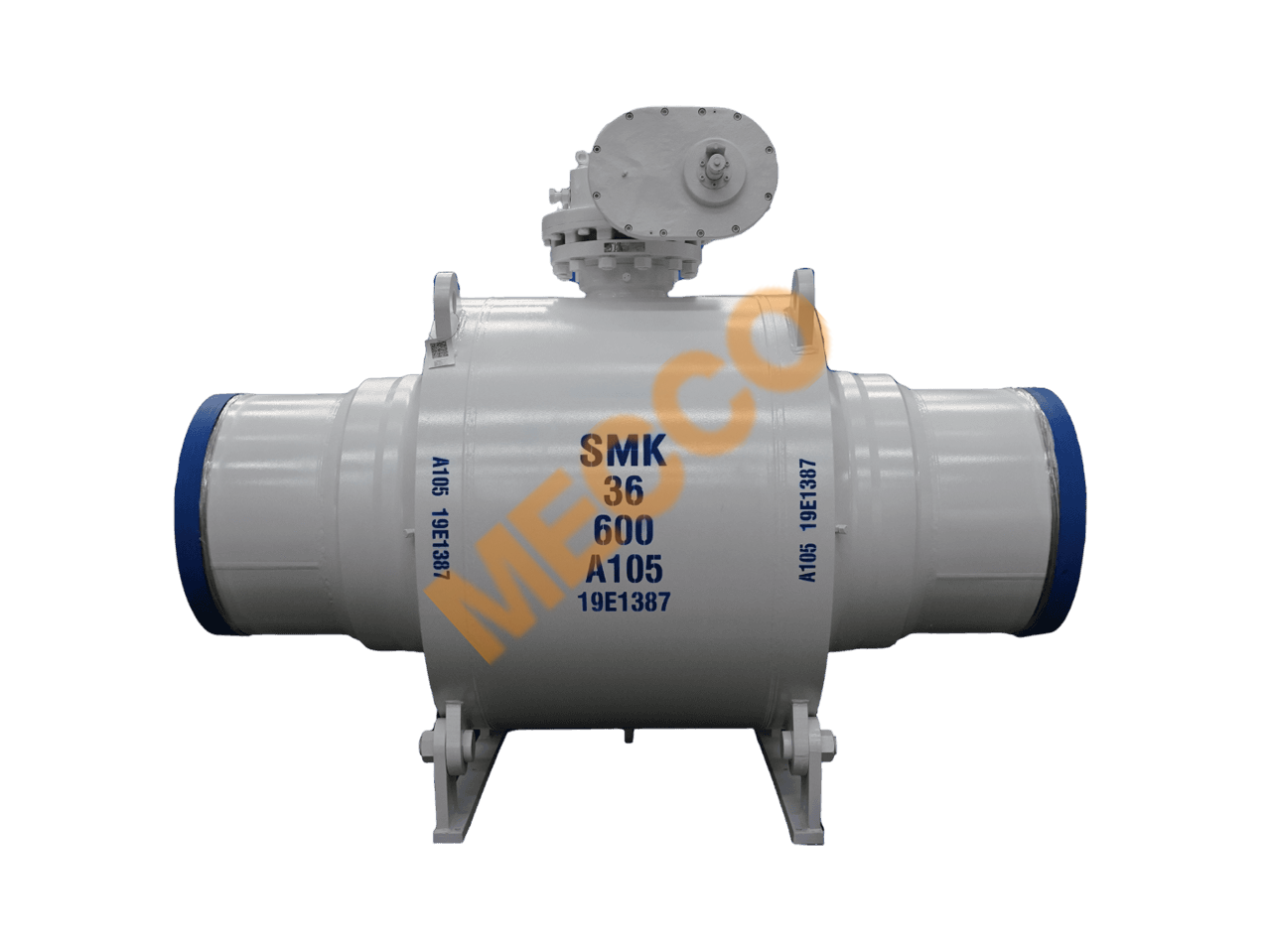

Fully Welded Ball Valve

MECCO Fully Welded Ball Valves are designed and manufactured in accordance with API 6D and GB/T 19672. Available pressure ratings include CL150, CL300, CL600, CL900, CL1500, and CL2500 (or PN16 to PN420). For other pressure classes, design can be based on ASME B16.34 or GB/T 12224. Operating temperature range: -50℃ to 150℃.
Product Details
Top-Entry Ball Valve

MECCO Top-Entry Ball Valves are designed and manufactured in accordance with API 608, API 6D, ISO 17292, and GB/T 12237. Pressure ratings include CL150, CL300, CL600, CL900, CL1500, and CL2500 (or PN16 to PN420). If other pressure classes are required, the design can be carried out according to ASME B16.34 or GB/T 12224. Operating temperature range: -29℃ to 150℃.
Product Details
DBB Ball Valve (Double Ball)

MECCO DBB (Double Ball) Valves are designed and manufactured in accordance with API 6D and GB/T 19672. Available pressure ratings include CL150, CL300, CL600, CL900, CL1500, and CL2500 (or PN16 to PN420). For other pressure classes, the design can follow ASME B16.34 or GB/T 12224. Operating temperature range: -50℃ to 150℃.
Product Details
